Model Storage Dimension Weight Depth measure range Width measure range Download
WF-F600 16 GB 200*144*65mm 1.35kg 5-500mm 0.01-10mm TDS | MSDS | Test report
WF-F600

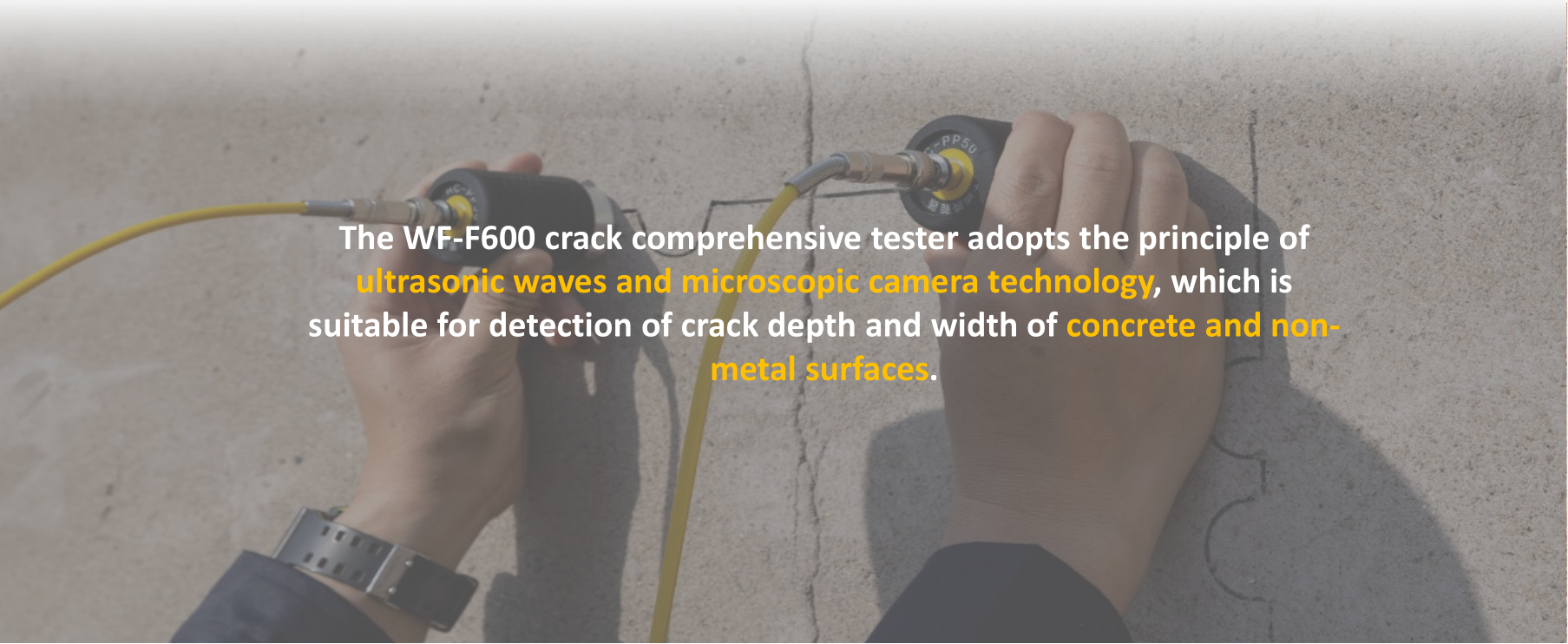

Crack width and depth testing
Two functions in one
First wave automatic interpretation
Display the testing result directly
Full color HD touch large screen
Much easier operate
Continuous working time over 8 hours
Low power design
Optionally overridden in testing process
Delete the exist wave
Professional data analysis software
Get the testing report easily
Features
The concrete crack width, the fissure deep, the two major functions are integrated;
Automatically read the first wave of sound and volatility, no need to read manually, directly display the detection results;
5 -inch full -color LCD touch screen, convenient operation;
The operation interface is simple and friendly, easy to learn and easy to use;
Low -power design, continuous working time is greater than 8 hours;
Support manual adjustment sound line, data correction test results are more accurate;
During the test, you can cover and delete the existence point waveform;
U disk rectify data, support software upgrades through the U disk, and enjoy convenient service support;
PC -specific analysis software has powerful functions, data analysis processing, and printing reports are easily completed.
Standard
GB 50292-2015 "Appraisal Standards for Reliability of Civil Buildings"
GB 50204-2015 "Code for the Construction Quality Acceptance of Concrete Structure Project"
GB/T 50784-2013 "Settlement Technical Standards for Setting Structure"
JGJ 125-2016 "Dangerous House Appraisal Standards"
DB11/T 637-2015 "Standards for Safety Appraisal of House Structure"
CECS 21: 2000 "Ultrasound Method Testing Concrete Defective Technical Regulations"
SL/T 352-2020 "Water Industry Concrete Test Regulations"
Technical parameters
Number of channels: dual channels
Display: 5 -inch color LCD screen (720x1280)
Storage capacity: 16G
Sampling interval: 0.025 μs ~ 2000 μs multi -gear can be optional
Sampling length: 512 points ~ 2048 o'clock multiple gear can be optional
Launch pulse width: 0.1 μs ~ 100 μs
Launching voltage: 125V, 250V, 500V, 1000V multi -grade optional
Trigger circuit: Internal trigger method
Transfer method: Dedicated USB flash drive
Charging power supply: AC100 ~ 240 V, 50/60Hz, output 12.6VDC, 3.0A
Host volume: 200 × 144 × 65 (mm)
Host weight: 1.35kg
Work temperature: -20 ~ +60 ℃
Deep measurement range: 5 ~ 500 ㎜
Width measurement range: 0.01 ~ 10 ㎜
